Uberti 1873 Cattleman Revolver Screw Set

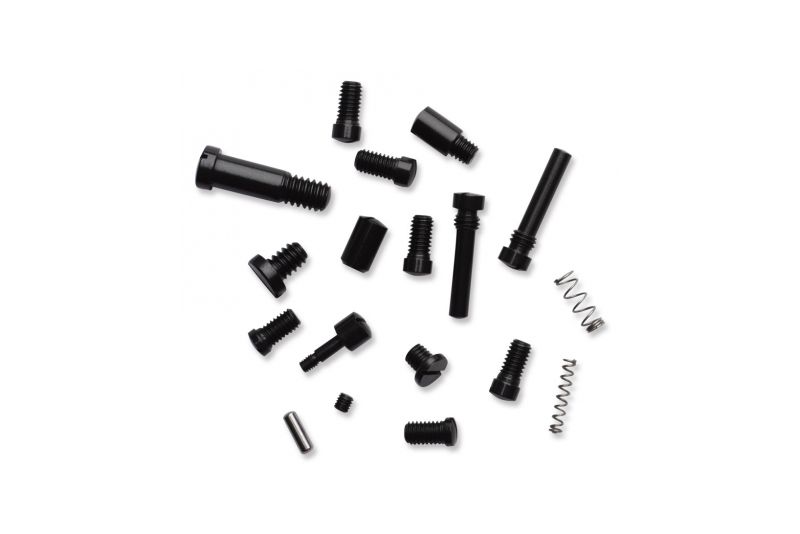

This screw kit is manufactured by Uberti for their New Model Cattlemans. All parts included are steel. Refer to the full view schematic picture labeled with reference numbers for part location. Includes:
(1) #18 - U0400018 coil hand spring
(1) #22 - U0400022 coil hand spring pin
(2) #31 - U0000031 front triggerguard & bottom grip connect screw
(4) #32 - U0000032 rear backstrap & triggerguard screw
(1) #35 - U0000035 trigger & bolt spring screw
(1) #36 - U0000036 mainspring screw
(1) #37 - U0400037 hammer screw
(1) #38 - U0000038 trigger screw
(1) #40 - U0000040 bolt screw
(1) #137 - U4500137 cylinder pin retainer spring
(1) #139 - U0400139 cylinder pin nut
(1) #140 - U0400140 cylinder pin screw
(1) #144 - U0400144 ejector rod tube screw
(1) #692 - U0400692 coil hand spring retainer screw
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
This screw kit is manufactured by Uberti for their New Model Cattlemans. All parts included are steel. Refer to the full view schematic picture labeled with reference numbers for part location. Includes:
(1) #18 coil hand spring
(1) #22 coil hand spring pin
(2) #31 front triggerguard & bottom grip connect screw
(4) #32 rear backstrap & triggerguard screw
(1) #35 trigger & bolt spring screw
(1) #36 mainspring screw
(1) #37 hammer screw
(1) #38 trigger screw
(1) #40 bolt screw
(1) #137 cylinder pin retainer spring
(1) #139 cylinder pin nut
(1) #140 cylinder pin screw
(1) #144 ejector rod tube screw
(1) #692 coil hand spring retainer screw
SKU | PAR/0400SCR |
---|---|
MSRP | 51.08 |
FFL Dealer Required | No |
Manufacturer | Uberti |
New Arrival Product | No |
Shipping Restriction | No |
UPC | 83966500830 |
Quantity in Pack | 1 |
